TCIII-UDC-80S
Configurable: 4 to 80 IC's in parallel testing

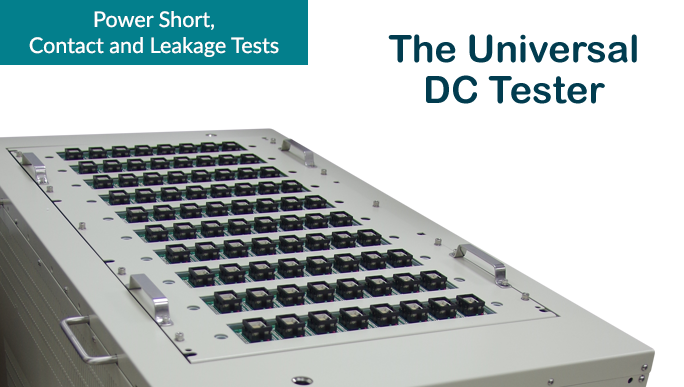

The TCIII-UDC-80S is designed to provide a high-performance universal (DC) IC tester. The TCIII-UDC-80S provides fast DC parametric testing with cost-effectiveness: Power Short Test, Contact Test and Leakage Test. The tester is suitable for testing a wide range of memory IC types: DRAM, NAND Flash, eMMC, MCP and eMCP. It can be flexible integrated with the interface of manual/ automatic IC handler to increase productivity.
Test Capabilities
Universal (DC) IC Tester
- DC testing on DRAM, NAND Flash, eMMC, MCP and eMCP IC
- Configurable: 4 to 80 IC's at high speed by its DUT board
- Functional Testing (Power Short, Contact and Leakage tests)
- Supports manual/ automated IC handling testing
Power Short
The TCIII-UDC-80S detects the resistance between the corresponding power pin and grounded. If the test result is lower than the set threshold value, it is determined that a Power Short pin has occurred.
| Model | Power Pins | |
|---|---|---|
| DDR4 | VPP - VSS | VDD - VDDQ |
| VPP - VDDQ | VDD - VREFCA | |
| VPP - VREFCA | VDDQ - VREFCA | |
| VDD - VSS | VDDQ - VSS | |
| VDD - VPP | VREFCA- VSS | |
| DDR5 | VPP - VSS | VDD - VPP |
| VPP - VDDQ | VDD - VDDQ | |
| VDD - VSS | VDDQ - VSS | |
| LPDDR4 | VDD1 - VSS | VDD2 - VSS |
| VDD - VDD2 | VDD2 - VDDQ | |
| VDD - VDDQ | VDDQ - VSS | |
| LPDDR5 | VDD1 - VSS | VDD2H - VDDQ |
| VDD1 - VDD2H | VDD2L - VSS | |
| VDD1 - VDD2L | VDD2L - VDDQ | |
| VDD2H - VSS | VDDQ - VSS | |
| VDD2H - VDD2L | ||
Contact Test
The Contact Pattern will detect any open pins on the contacts between the test socket and device during testing. The tester will apply a DC supply voltage to the Contact Test circuit. It scans the defined pins on the DUT. It will have a contact current if the pin is connected.
| Model | Measured Pins |
|---|---|
| DDR4 | Address Pins, Control Pins, DM Pins and DQ Pin |
| DDR5 | |
| LPDDR4 | |
| LPDDR5 | |
| NAND Flash | Data Pins |
| eMMC | Control Pins, Data Pins and Misc Pin (VSF1 to VSF9) |
Leakage Test
This will detect the leakage current (in and out) of the IC pins. The tester applies a DC supply voltage to the Leakage Test circuit. It scans all defined pins on the DUT. The tester will measure the leakage if the pin is shorted to GND/ VDD/ other pins.
| Item | Description |
|---|---|
| VSIM (Leakage) | Range: 0V to 2V |
| Range 1: 1uA to 200uA, Accuracy: ± (1uA+1%) | |
| Range 2: 200uA to 2mA, Accuracy: ± (5uA+1%) | |
| Range 3: 2mA to 32mA, Accuracy: ± (50uA+1%) |

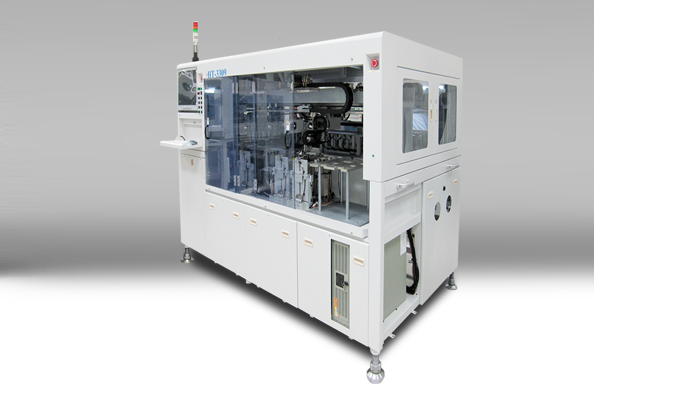

IC Handler Interface
Easy configuration and setup
The TurboCATS series supports both manual and automated handling testing.
Designed to easily integrate with various selected handlers.
Enhanced Features
The TCIII-UDC-80S (DC) Tester
DC testing on DRAM, NAND Flash, eMMC, MCP and eMCP IC - - DRAM: DDR4, DDR5, LPDDR4 and LPDDR5
- - MCP: DRAM + NAND Flash IC
- - eMCP: DRAM + eMMC IC
Configurable for parallel testing 4, 6, 8 or up to 80 IC’s at high speed by its DUT board (depends on IC package)
Functional Testing - - Power Short Test
- - Contact Test
- - Leakage Test
Supports manual and automated handler testing
Variable Power
| Variable Power Supplies | ||||
| DUT | DC Volt | Resolution | Accuracy | |
| DDR4 | VPP | 2.375 to 2.75V | 1mV (approximated) |
±1% (approximated) |
| VDD | 1.1 to 1.4V | |||
| VDDQ | 1.1 to 1.4V | |||
| DDR5 | VPP | 1.7 to 1.95V | ||
| VDD | 1.06 to 1.17V | |||
| VDDQ | 1.06 to 1.17V | |||
| LPDDR4 | VDD1 | 1.7 to 1.95V | ||
| VDD2 | 1.06 to 1.25V | |||
| VDDQ | 1.06 to 1.17V | |||
| LPDDR4X | VDD | 1.7 to 1.95V | ||
| VDD2 | 1.06 to 1.25V | |||
| VDDQ | 0.57 to 0.65V | |||
| LPDDR5 | VDD1 | 1.7 to 1.95V | ||
| VDD2H | 1.01 to 1.12V | |||
| VDD2L | 0.87 to 1.12V | |||
| VDDQ | 0.47 to 0.57V | |||
| 0.27 to 0.37V | ||||
| eMMC | VCC | 2.7 to 3.6V | ||
| VCCQ | 1.6 to 1.95V | |||
| NAND FLASH | VCC | 2.35 to 3.60V | ||
| VCCQ | 1.14 to 1.95V | |||
Note: Information and data are subject to change without notice. For reference only. Contact our sales team for more information.
Operating Requirements
| Item | Description | ||
|---|---|---|---|
| External PC Requirements | Windows 8 operating system or greater, CPU Intel i5 or greater, memory 16 GB or above, LAN port x2, USB port(s), keyboard, mouse, DVD drive, video-either onboard or plug-in card that supports a minimum resolution of 1280 x 1024 | ||
| Operating Environment | Recommend Temperature: 16°C to 32°C (60.8°F to 89.6°F) Recommend Humidity: 20% to 80% |
||
| Recommended Temperature | 16°C to 32°C (60.8°F to 89.6°F) Please keep enviroment ventilated. |
||
| Approximate Size | 101 cm x 62 cm x 45 cm | ||
| Dimensions (L x W x H) | Weight: 112.5 kg | ||
Software Screenshots
Main Operating Window
Test Device
Test Plan
Power Short
